Abrasive Flow Machine
Created with Pixso.

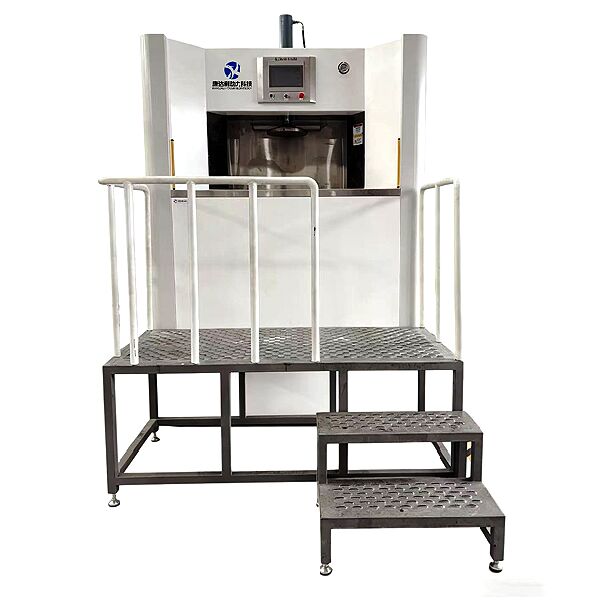

One-way Fluid Polishing Machine KDL-152

One-way Fluid Polishing Machine KDL-152

Brand Name: Kangdali Power Technology
Model Number: KDL-162
MOQ: 1
Price: 100000-1500000w
Packaging Details: Wooden Box
Payment Terms: T/T
Detail Information
Place of Origin:
Xi'an
Supply Ability:
Annual output 500-1000 units
Product Description

Product Features: This technology is a new type of fluid polishing equipment developed for irregular workpieces such as pin-sealed plastic molds, hot nozzles, hot runners, long tubes, and bent tubes!
This technology is a new type of fluid polishing equipment developed for irregular workpieces such as plastic molds, hot nozzles, hot runners, long tubes, and bent tubes! It can achieve automatic, economical, and efficient polishing effects under PLC computer control. The polishing marks are consistent with the direction of use of the workpiece, thus exhibiting the characteristic of unidirectional dimensional processing. This processing method is the most suitable process for complex shapes such as concave and convex surfaces, curved channels, multiple holes, small holes, and long holes, which are difficult to reach with conventional cutting tools.

One-way Fluid Polishing Machine KDL-152 0
To meet customer needs, our company customizes unidirectional abrasive fluid polishing machines and related services according to customer product requirements. We also provide hot runner system processing services and cavity and micro-hole repair services for enterprises or individuals in need. In addition, you can contact us for the following needs: internal polishing and deburring of workpieces with micro-holes, multi-holes, long holes, curved holes, and irregular holes, which can improve the product's precision by 3 levels in a few minutes, and the surface roughness can reach Ra<0.01μm.

Model

KDL-162

Device dimensions

1300mm*1200mm*2300mm

Workbench dimensions

500mm*500mm*280mm

workbench height

1050mm

Abrasive capacity

6Kg

Equipment power

3.75Kw

Equipment pressure

1-14Mpa

Equipment weight

1.5T
