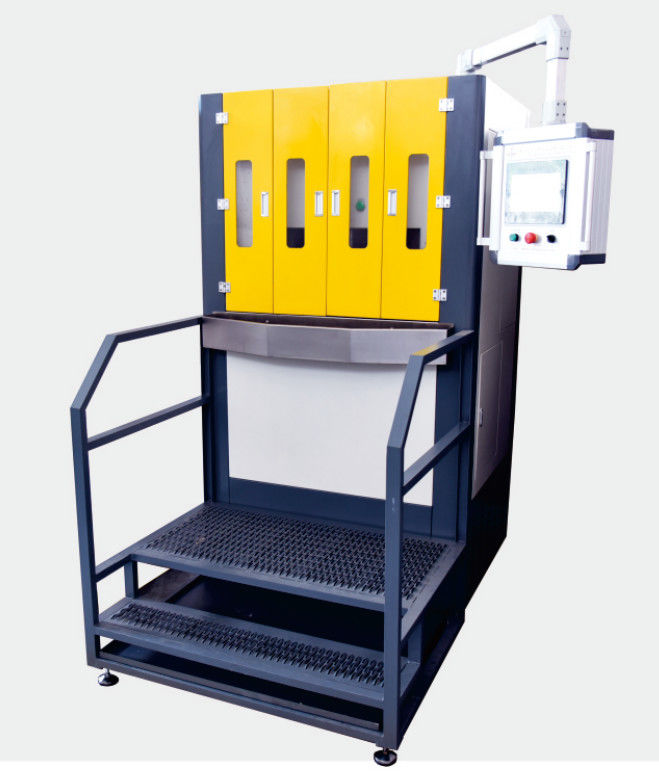

KDL-362 One-Way Automatic Circulation Polishing Machine

Precision Unidirectional Flow Polishing System

One-Way Automatic Circulation Polishing Machine is an automated equipment that uses unidirectional flow abrasive media to achieve efficient surface treatment.Its working principle is to drive the polishing abrasive (such as diamond micropowder, ceramic particles and other suspensions) to circulate in a single direction through a pump pressure system, and remove the microscopic protrusions of the material through the micro-cutting and rolling action of the abrasive particles when flowing through the workpiece surface, so as to achieve precision polishing (Ra 0.01-0.1μm). The system is equipped with an automatic filtration and recovery device, which can purify and recycle the abrasive in real time, significantly reducing the cost of consumables.

Features and applications:
Core features: Directional flow efficient polishing: One-way flow design avoids turbulent interference and ensures processing consistency; Closed-loop automatic circulation: Built-in multi-stage filtration system, abrasive utilization rate increased by more than 80%;Intelligent process control: PLC adjusts the flow rate (5-50L/min) and pressure (0.2-1.5MPa), suitable for materials of different hardness; Modular structure: Quick-detachable flow channel design supports quick replacement of abrasive types.Typical applications: Precision bearings: steel ball/raceway superfinishing, roundness error ≤ 0.1μm; Optical molds: glass mold cavity mirror polishing (Ra ≤ 5nm)Semiconductor accessories: wafer bearing ring deburring; Medical devices: orthopedic implant surface passivation.

Machine Size
