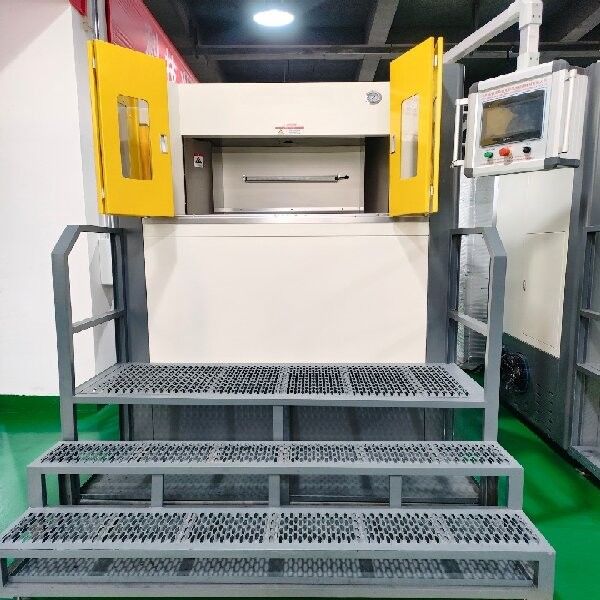

One Way Auto Polisher-KDL-521 One-Way Automatic Circulation Polishing Machine

Precision Unidirectional Flow Polishing System

One-Way Automatic Circulation Polishing Machine is an automated equipment that uses unidirectional flow abrasive media to achieve efficient surface treatment.
Its working principle is to drive the polishing abrasive (such as diamond micropowder, ceramic particles and other suspensions) to circulate in a single direction through a pump pressure system, and remove the microscopic protrusions of the material through the micro-cutting and rolling action of the abrasive particles when flowing through the workpiece surface, so as to achieve precision polishing (Ra 0.01-0.1μm). The system is equipped with an automatic filtration and recovery device, which can purify and recycle the abrasive in real time, significantly reducing the cost of consumables.

Working Principle:
One-way Automatic Circulation Polishing Machine is an efficient surface treatment equipment, which adopts closed-loop assembly line design to realize automatic loading,polishing, inspection and unloading of workpieces. Its core systems include:Conveying system: The variable frequency motor drives the conveyor belt to ensure that the workpiece passes through the polishing area at a uniform speed;Polishing unit: Multiple sets of polishing wheels (cloth wheels, nylon wheels, wool wheels, etc.) are finely polished according to the preset pressure and speed;Circulation system: Automatically recycle polishing liquid and filter impurities to realize the recycling of abrasives;Intelligent control: PLC programming controls polishing parameters (pressure, speed, time) and supports data traceability.

Core features:
Efficient and continuous operation: A single machine can process 300-500 workpieces per hour and supports 24-hour operation;High polishing consistency: ±0.01mm surface roughness control, suitable for high-precision parts;Energy saving and environmental protection: The closed polishing liquid circulation system reduces waste liquid discharge by 90%;Flexible adaptation: Modular design allows replaceable polishing wheels, suitable for a variety of materials such as metals, plastics, and ceramics.

Typical application scenarios:
Auto parts: mirror polishing of engine pistons and gearbox gears;3C electronics: deburring of mobile phone frames and laptop computer shells;Medical equipment: stainless steel surface treatment of surgical instruments;Hardware tools: batch polishing of knives and locks.The equipment can reduce labor costs by 60% and increase the yield rate to 99%, which is especially suitable for large-scale, high-standard precision polishing needs.

Machine Size
