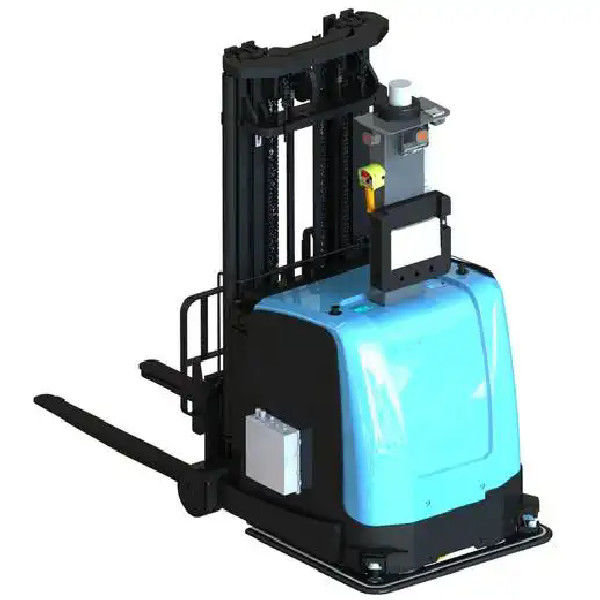

Autonomous Counterbalanced Handling Robot-Counterbalanced Unmanned Forklift

Autonomous Counterbalanced Handling Robot-Counterbalanced Unmanned Forklift

Counterbalanced Unmanned Forklift is a heavy-duty automated handling equipment based on intelligent navigation technology. It balances the load through built-in counterweight blocks to achieve efficient and stable unmanned operation.Its core principle is: using multi-sensor fusion technology (lidar + visual camera + IMU), combining SLAM algorithm to build an environmental map, and planning the optimal path through the central control system; the hydraulic system drives the gantry up and down (maximum lifting 8m), and the counterweight mechanism automatically adjusts the center of gravity to ensure stable handling under a load of 1-5 tons.

Main technical features:
1. Intelligent balancing system: real-time monitoring of load distribution, automatic adjustment of counterweight motor torque, tilt angle ≤1°;
2. Omnidirectional mobile chassis: Mecanum wheel or dual steering wheel design to achieve ±5mm level precision docking;
3. Multi-machine collaborative scheduling: The 5G-based Fleet management system can control 50+ forklift operations at the same time;
4. Industrial-grade protection: IP54 protection level, stable operation in -30℃~50℃ environment.

Typical application scenarios:
Heavy manufacturing: Transfer of stamping parts for automobile production lines (single load 4.5 tons);
Port logistics: Container loading and unloading operations (adaptable to ISO standard box types);
Steel metallurgy: Steel coil transportation (special C-type fork design);
Smart warehousing: Linked with AS/RS system to achieve 24-hour unmanned access to warehouse;
