Abrasive Flow Machining - Surface Finishing, Deburring, and Polishing

Brand Name:	Kangdali Power Technology
Model Number:	KDL251
MOQ:	1
Price:	100000-1500000W
Packaging Details:	Wooden Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an

Supply Ability:

Annual output 500-1000 units

Product Description

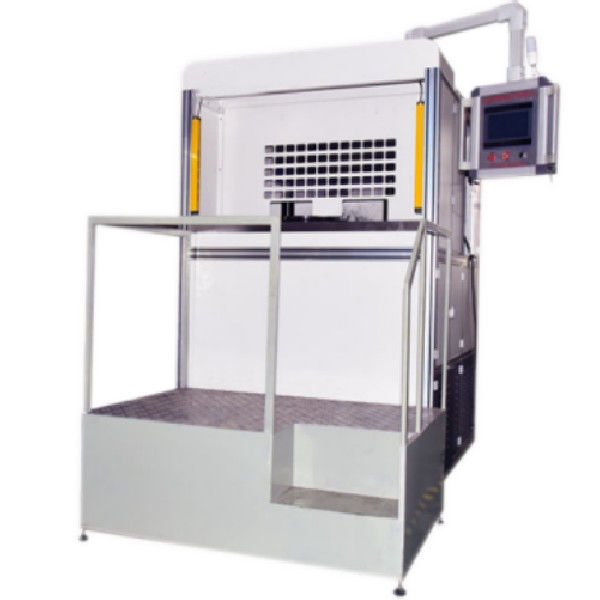

Precision Unidirectional Flow Polishing System

The one-way automatic circulating fluid polishing machine uses the lower hydraulic cylinder to move and squeeze,so thatThe soft abrasive is extruded from the same inlet and from other channels,and repeatedly ground toTo achieve the purpose of polishing,deburring and chamfering.This processing method is applicable to all kinds of curved flow channels, elbows or slender pipes,and large internalCavity and other workpieces that are not easy to polish,or precision parts to remove cross hole burrs,is the most importantSuitable processing method. And the grinding direction is consistent,which can effectively improvePerformance,quality and service life of the die or workpiece.After polishing, the finish can reach the mirror grade, and the best surface roughness can reach ra0.2μm.

Machine Size

Model	Height	Width	Depth	Weight	Remarks
KDL251	2700mm	1700mm	1550mm	3.5T	Specific parameters based on the actual product
KDL351	2900mm	1900mm	1850mm	4.5T
KDL501	3150mm	2200mm	2100mm	6.5T
KDLD501	3150mm	2200mm	2100mm	6.5T

Other Parameters

Model	Operation Panel	Abrasive cylinder diameter	Processing pressure (adjustable)	Motor power	Machine voltage
KDL251	500mm	252mm	1.5~10Mpa	11.75KW	380V/50HZ
KDL351	550mm	352mm	1.5~8.5Mpa	15.75KW	380V/50HZ
KDL501	600mm	502mm	1.5~8.5Mpa	23KW	380V/50HZ
KDLD501	600mm	502mm	1.5~8.5Mpa	23KW	380V/50HZ
