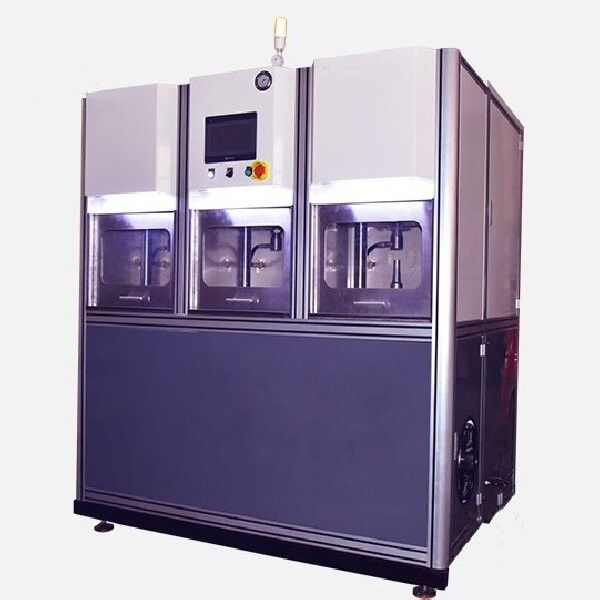

Fluid Precision Polishing Equipment-KDLGS2500 Water Particle Flow Polishing Machine

Cnc Water Particle Flow Mirror Polishing Machine

Water Particle Flow Polishing Machine is a device that uses high-pressure water mixed with micron-level abrasives to form a high-speed jet, and achieves precision polishing of the workpiece surface through impact cutting and rolling. Its core features are cold processing (no thermal damage), nanometer-level precision (Ra≤0.1μm) and adaptability to complex surfaces, supporting efficient processing of hard and brittle materials (such as ceramics, semiconductors) and soft metals (such as copper and aluminum). By adjusting the water pressure (50-300MPa), abrasive type and jet angle, different effects such as mirror and matte can be flexibly achieved. It is widely used in ultra-precision surface processing of optical components, aerospace components, medical implants and 3C electronic products, and has both environmental protection (water circulation system) and automation potential (CNC machine models).

Water Particle Flow Polishing Machine Principle, Characteristics and Applications
Principle: The multi-axis linkage system precisely controls the trajectory of the mixed abrasive water jet, and the CFD fluid simulation is combined to optimize the injection angle to achieve uniform polishing of complex surfaces (such as turbine blades and mold cavities). The abrasive automatic recycling system reduces the cost of consumables.
Features: Complex surface adaptation: 5-axis CNC, which can reach deep grooves and special-shaped structures that are difficult to handle with mechanical polishing.Environmentally friendly and efficient: closed-loop water circulation + abrasive separation, wastewater discharge is reduced by 90%.
Intelligent monitoring: real-time surface roughness detection feedback, automatic adjustment of process parameters.Application: Aerospace: deburring of engine blades and spacecraft structural parts.
Automobile manufacturing: precision polishing of fuel nozzles and gearbox gears.3C industry: high-gloss treatment of mobile phone ceramic back panels and smart watch shells.
